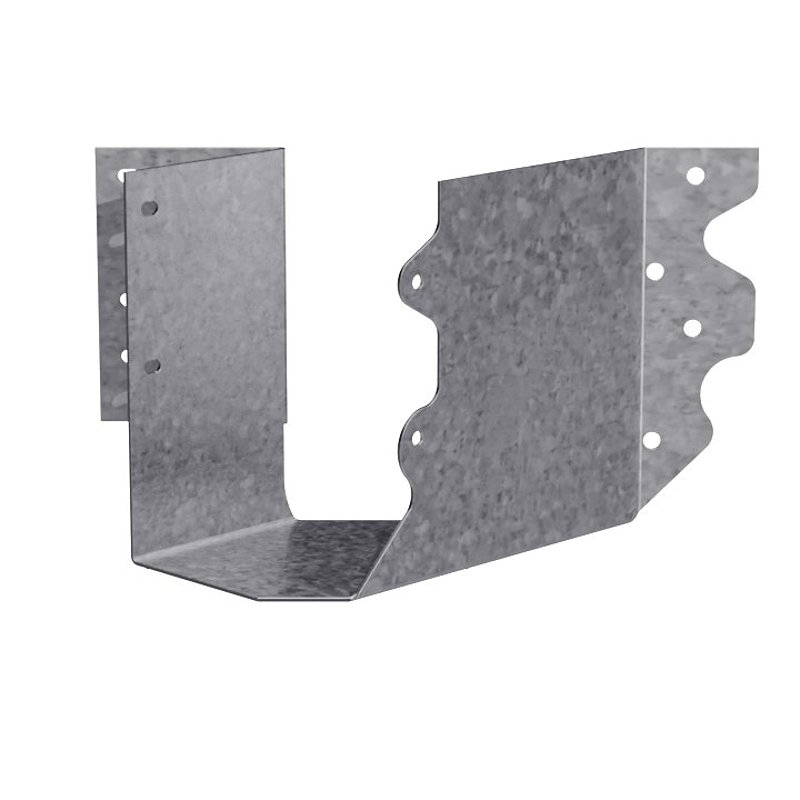

Simpson Strong-Tie SUL SUL26 Hanger, 5 in H, 2 in D, 1-9/16 in W, Steel, Galvanized/Zinc, Face Mounting

Simpson Strong-Tie

Simpson Strong-Tie SUL SUL26 Hanger, 5 in H, 2 in D, 1-9/16 in W, Steel, Galvanized/Zinc, Face Mounting

$10.99$10.99
Simpson Strong-Tie SUL SUL26 Hanger, 5 in H, 2 in D, 1-9/16 in W, Steel, Galvanized/Zinc, Face Mounting
  • Depth: 2 in
  • Fastener Type: Nail
  • Finish: Galvanized/Zinc
  • Material: Steel
  • Mounting Type: Face
  • Model #: SUL26
  • UPC #: 044315812309
  • SKU: 8229403

Your shopping list will be used for pickup in-store

Product Details

The SUR/L are 45 deg skewed hangers designed to support solid sawn and engineered-wood products used in wood construction. These U-shaped hangers encapsulate the top-flange of the joist, so no web stiffeners are required for standard installation.

Key Features

  • Skewed left
  • These hangers will normally accommodate a 40 to 50 deg skew
  • The joist end may be square cut or bevel cut
  • Angled nail slots direct nails for proper installation
  • Made from 16 ga steel
  • Galvanized (G90) for extra corrosion resistance
  • Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist
  • Features positive-angle nailing for engineered-wood sizes to prevent wood splitting and to speed installation

Item Specifications

Depth2 in
Fastener TypeNail
FinishGalvanized/Zinc
MaterialSteel
Mounting TypeFace
Skew Angle45 deg
Width1-9/16
