SAW MITER SLID DBL BEVL 12IN

DEWALT

SAW MITER SLID DBL BEVL 12IN

$679.99$679.99
SAW MITER SLID DBL BEVL 12IN
  • Blade Diameter: 12 in
  • Control Type: Trigger Switch
  • Cord Length: 6 ft
  • Cutting Capacity: 2 x 12 in at 45 deg 2 x 16 in at 90 deg
  • Dimensions: 23-1/2 in L x 30-1/2 in W x 19-3/4 in H
  • Model #: DWS780
  • UPC #: 885911906913
  • SKU: 4368098

Your shopping list will be used for pickup in-store

Product Details

Adjustable stainless steel miter detent plate with 10-positive stops delivers repeatable accuracy and worksite durability. Tall sliding fence supports crown molding up to 6-5/8" nested and base molding up to 6-1/2" vertically against the fence while easily sliding out of the way for bevel cuts. Single lever action double bevel design allows saw to easily bevel left and right 0-48 degree with positive stops at 0, 22.5, 33.9 and 45 degree in both directions permitting user to flip the saw and not the material. Back fence design delivers ability to cut 2 x 16" dimensional lumber at 90 degrees and 2 x 12" at 45 degrees. Precise miter system and machined base fence support deliver increased cutting accuracy. Innovative gearbox and belt-drive design for increased vertical cutting capacity. Miters 60 degrees to the left and 50 degrees to the right. Dual horizontal steel rails with clamping mechanism and linear ball bearings. Camlock miter handle with detent override. Compact and lightweight design for quick, easy transport and storage. For use with No.DW7187 Adjustable Miter Saw Laser System which delivers visibility of the cutting path. STANDARD EQUIPMENT: carbide blade, dust bag, blade wrench. SPECIFICATIONS: 15 amps, 3,800 RPM no load speed, 12" blade diameter, 5/8 or 1" arbor size, 6-1/2" vertical capacity baseboard against fence, 6-5/8" vertical capacity crown molding vertically nested, 16" horizontal capacity baseboard lying flat, 11-1/4" horizontal capacity crown molding lying flat, 2 x 14" (2 x 16" with back fence) 45-degree bevel cut capacity (dimensional lumber), 2 x 14" (2 x 16" with back fence) for 90-degree cross-cut capacity (dimensional lumber), 16" for 90-degree cross-cut capacity (max width), 2 x 12" max width for 45-degree miter-cut capacity (max height), 2 x 12" for 45-degree miter-cut capacity (max width). 53 lbs. tool weight. Stand Not Included.

Item Specifications

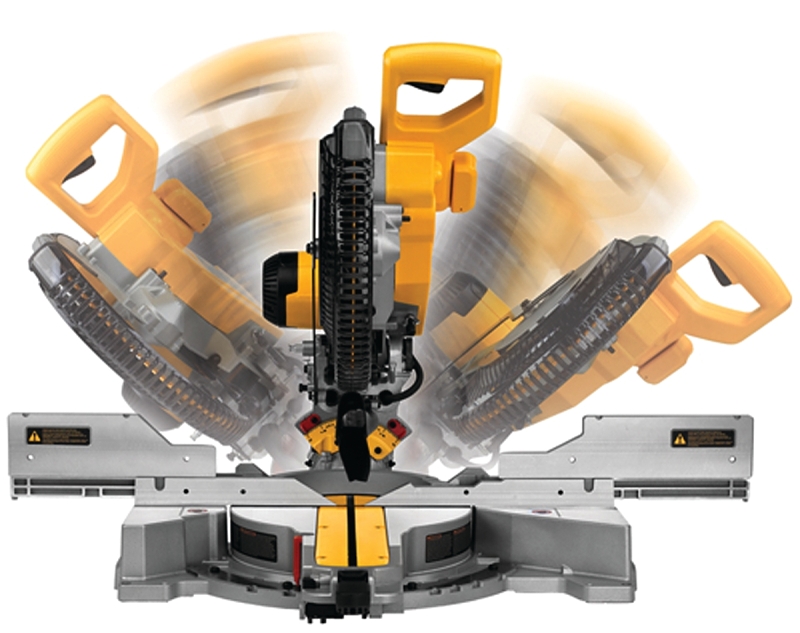

Blade Diameter12 in
Control TypeTrigger Switch
Cord Length6 ft
Cutting Capacity2 x 12 in at 45 deg 2 x 16 in at 90 deg
Dimensions23-1/2 in L x 30-1/2 in W x 19-3/4 in H
IncludesBlade Wrench Dust Bag Vertical Material Clamp 12 in Carbide Blade
Maximum Bevel Angle49 deg
Maximum Miter Angle60 deg
Number Of Speeds1
Power Supply1675 W
Sound Level100 dBA
Speed Rating3800 rpm
Vibration Level25 m/sq-s
